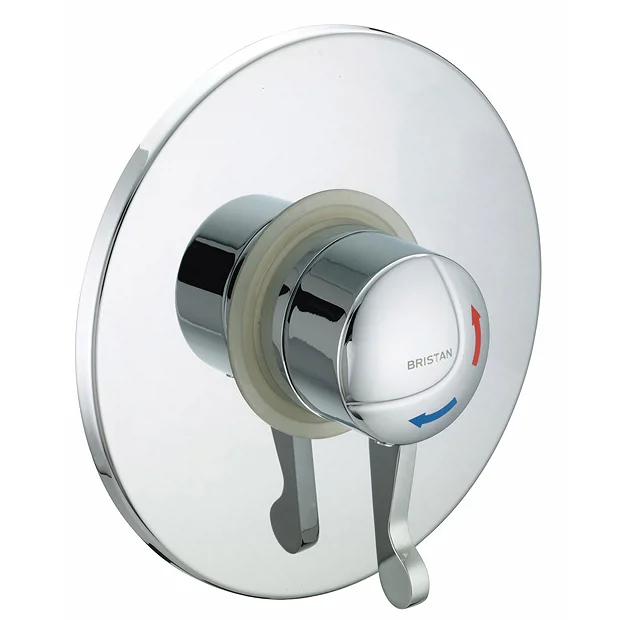

Bristan – Opac Thermostatic Concealed Shower Valve With Chrome Lever

Bristan – Opac Thermostatic Concealed Shower Valve with Chrome Lever – OP-TS1503-CL-C

From the Bristan Commercial range, the Opac Thermostatic Concealed Shower Valve with Chrome Lever is a single sequential controlled valve for both temperature and flow. It features an automatic thermostatic shut-off in the event of hot or cold water failure and an anti-vandal stainless steel concealing plate. TMV3 and WRAS approved.

Product Details

• Product Code: OP TS1503 CL C
• Finish: Chrome Plated
• Product Type: Commercial
• Construction: Body is of brass construction and is designed to conform to BS EN 1111:1999 (HP) & BS EN 1287:1999 (LP)
• Valve Type: Thermostatic Cartridge
• Supply: Suitable for all plumbing systems (Preferably balanced)
• Inlet Connections: 15mm compression elbows
• Outlet Connections: ½” BSP
• Working Pressures: Min 0.2bar, Max 8.0bar. Maximum Static Pressure: 10.0 bar
• Dimensions for Fitting: 175mm inlet centres
• Single sequential control for both temperature & flow.
• Anti-vandal stainless steel concealing plate
• Automatic thermostatic shut-off in the event of hot or cold water failure.
• Check valves and serviceable filters as standard
• Inlet centres of 175mm +/- 1mm.
• Chrome plated to BS EN 248.

Compliance / Approvals

WRAS: Certificate Nº: 0712092
TMV3: Certificate Nº: BC397/1208
TMV2: Certificate Nº: BC1196/0413

12 Months manufacturers guarantee
