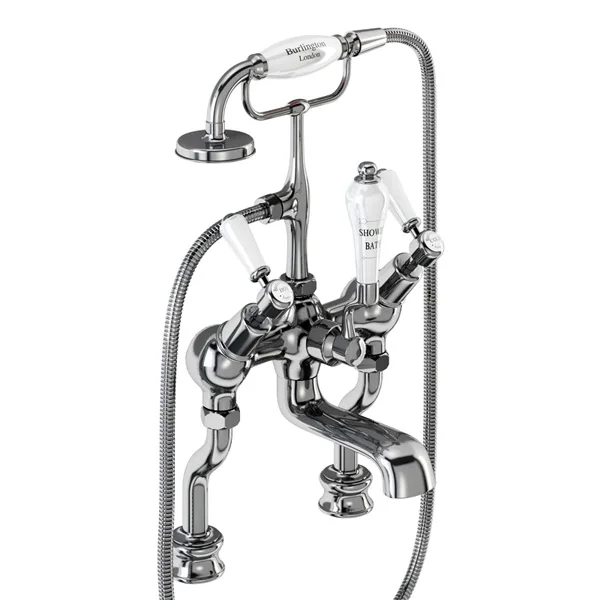

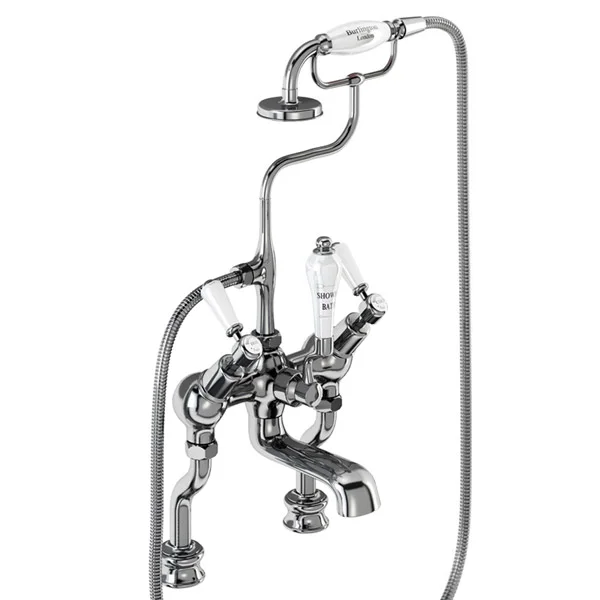

Burlington Kensington Regent – Angled Deck Mounted Bath/Shower Mixer

Burlington Kensington Regent – Angled Deck Mounted Bath/Shower Mixer – KER19

The Kensington Regent range features a traditional design, manufactured to the highest standards using the latest technology. All Kensington bath taps have a ceramic lever tap head with a ceramic indice in the centre.

Regal taps have been designed so that the spouts are 3cm higher off the bath/basin (and a further 3cm away from the wall in the case of Regent wall mounted taps) than their equivalent namesake. This creates an opulent feel and, in certain commercial applications, ensures compliance with some archaic building regulations!

Product Details

• Product Code – KER19
• Brand – Burlington
• Product Type – Traditional
• Finishes – Chrome plated
• Material – Bodies are of all brass construction
• Supplied with flow straighter – this is for use with low water pressure
• Supplied with aerator – this is for use with high water pressure
• Standard cradle with optional ‘S’ adjuster.

15 Year Guarantee

Compliance / Approvals

BS 5412:1996

Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)

BS EN 200:2008

Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Comprises

T9-QT Quarter Turn Angled Bath Shower Mixer high pressure (Including the standard cradle, ‘S’ adjuster, Claremont, Anglesey & Birkenhead divertor handle, hose, ceramic telephone handset)
T18 Deck Mounting unions (for Bath Shower Mixer & Bath Filler, 3/4)

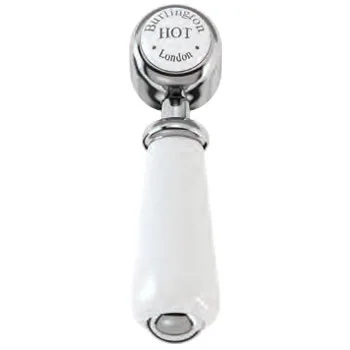

T4 Kensington tap handles (pair)
T4A Regent large pair of tap bases (for Bath taps, Bath shower mixers & Bath fillers – pair)

Flow Rates

System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (straightener) 22 22.6 25.2 27.2 29
Spout (aerator) 5.6 10.7 11.6 14.3 15.6
Handset 3.56 4.19 7.06 11.36 15.55
