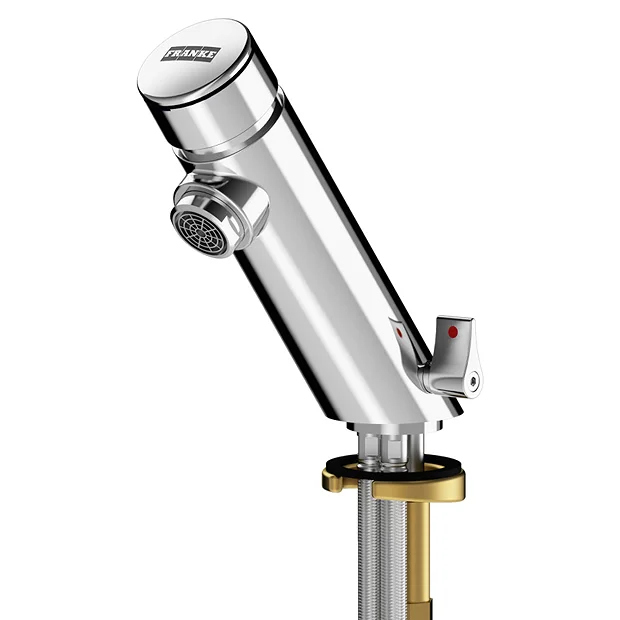

Franke F3S Self-closing Pillar Mixer Tap – F3SM1001

Franke F3S Self-closing Pillar Mixer Tap – F3SM1001

F3S-Mix self-closing pillar mixer DN 15 for sanitary facilities. Self-closing cartridge, hydraulically controlled, piston-free design, self-closing, stepless adjustment of flow duration. For connection to hot water and cold water via hoses with integrated backflow preventer and strainers. Temperature lever with adjustable, turn-proof temperature stop. Casing, high-polished chromium-plated brass. Aerator with an integrated flow regulator 3.0 l/min.

Product Details

• Depth: 375mm
• Height: 170mm
• Width: 130mm
• Material: Brass
• Colour: Chrome
• Deck Mounted
• Type of operation: Manual operation
• Diameter nominal: DN 15
• calculation flow rate cold water: 0.07 liter per second
• calculation flow rate hot water: 0.07 liter per second
• Functional principle: hydraulic self-closing
• minimum flow pressure: 1.00 bar
• volume flow rate at 3 bar: 0.05 liter per second
• Inlet size: G3-8
• Type of mixing: with mixer
• adjustable flow time: yes
• Material fitting: brass
• Sound insulation: no
• spout projection: 100.00 mm
• Surface finish fitting: chromed
• Type of tap: pillar tap
• depressurised: no
• thermal disinfection: no
• protective shutdown: no
• maximum flow time: 20.00 seconds
• minimum flow time: 5.00 seconds
• hygiene flushing: no

Guarantee: 5 Year
